1200W/28khz Ultrasonic generator
1200W/28khz Ultrasonic generator for cleaner,digital ultrasonic power supplier for cleaner,ultrasonic generator for ultrasonic transducer, High power Ultrasonic generator for cleaning,ultrasonic PCB Circuit,ultrasonic signal generator,
Item ID #D1200
UCEultrasonic: ||
List Price: $395.00€395.00£243.72AU$373.43CA$374.14S$487.23
Sale: $260.00€260.00£160.42AU$245.80CA$246.27S$320.71
Quantity: Unit(s)
Description

1200W/28khz Ultrasonic generator

Ultrasonic Generator for cleaner,digital ultrasonic power supplier for cleaner,ultrasonic generator for ultrasonic transducer, High power Ultrasonic generator for cleaning,ultrasonic PCB Circuit,ultrasonic signal generator,digital ultrasonic cleaning generator,ultrasonic generator kit,ultrasonic kit
1200W/28khz Ultrasonic generator
Specifications:
Remark: Price is for Digital  ultrasonic generator ONLY
Item Power Input voltage Transducer suggested Remark:
Ultrasonic generator 300W AC220V

AC110V

50W*6pieces Frequency adjustable from 20khz to 40khz

Auto Tracing or manual Adjusting Optional

Timer setting
  600W 50W*10pieces
  900W 50W*18pieces
  1000W 50W*20pieces
  1200W 50W*24pieces
  1500W 50W*30pieces
  1800W 50W*36pieces
  2000W 50W*40pieces
  2400W 50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities
Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.

Manual in detail:
Attention:the appliance can not stay above maximal current long time.
rating power 300W 600W 900W 1200W
maximal current 1A 2.5A 3.5A 4.5A



Environment temperature: 0-40C°
Relative humidity:40%--90%
Working frequency: 28KHz(40KHz,80 KHz,135KHz, etc)5%
Time control:      0—59 minutes 59 seconds
Range of power control: 0-100%   digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Outer size:  L x W x H = 300 x 360 x 150

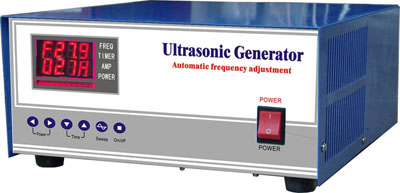

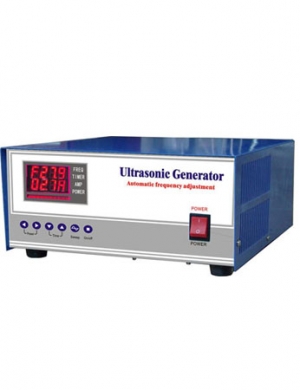

III. Instruction for panel Performance




Display window: for displaying fixed time, power, working state and faults.
1.      Switch for frequency sweep: selecting normal or frequency-sweeping working state.
2.      On/Off: controlling operation and pause of working state.
3.      Adding fixed time: set value of working time.
4.      Reducing fixed time: set value of working time.
5.      Raising power: raising output power.
6.      Reducing power: reducing output power.
